Mitsubishi mt750 Complete Power Steering System Kit Cylinder Valve Steering Box
Status: Available
Condition: Used Good
Shipping: Shippable
Fits: 1978 - 1982 Mitsubishi mt750 Diesel
Source Tractor: 1978 - 1982 Mitsubishi mt750 | SN# 750D-808612
This part is located in Lakeland, Florida and can be shipped throughout the United States. Shippable parts from tractors that have already been dismantled generally ship within 3 business days. Parts that still need to be removed may take several days or, in some cases, a few weeks depending on the part and the amount of disassembly required.
Local pickup may also be available by appointment for parts $100 and up.
Description
This Complete Power Steering System Kit Cylinder Valve Steering Box is from a 1978 - 1982 Mitsubishi mt750 Diesel parts tractor at Lakeland Tractor.
Part Notes
Power steering setup removed from a Mitsubishi MT750 tractor.
This is a complete factory-style power steering system and includes everything shown.
There is NO pump included. There is an included valve block to tie it into the tractors existing hydraulic system.

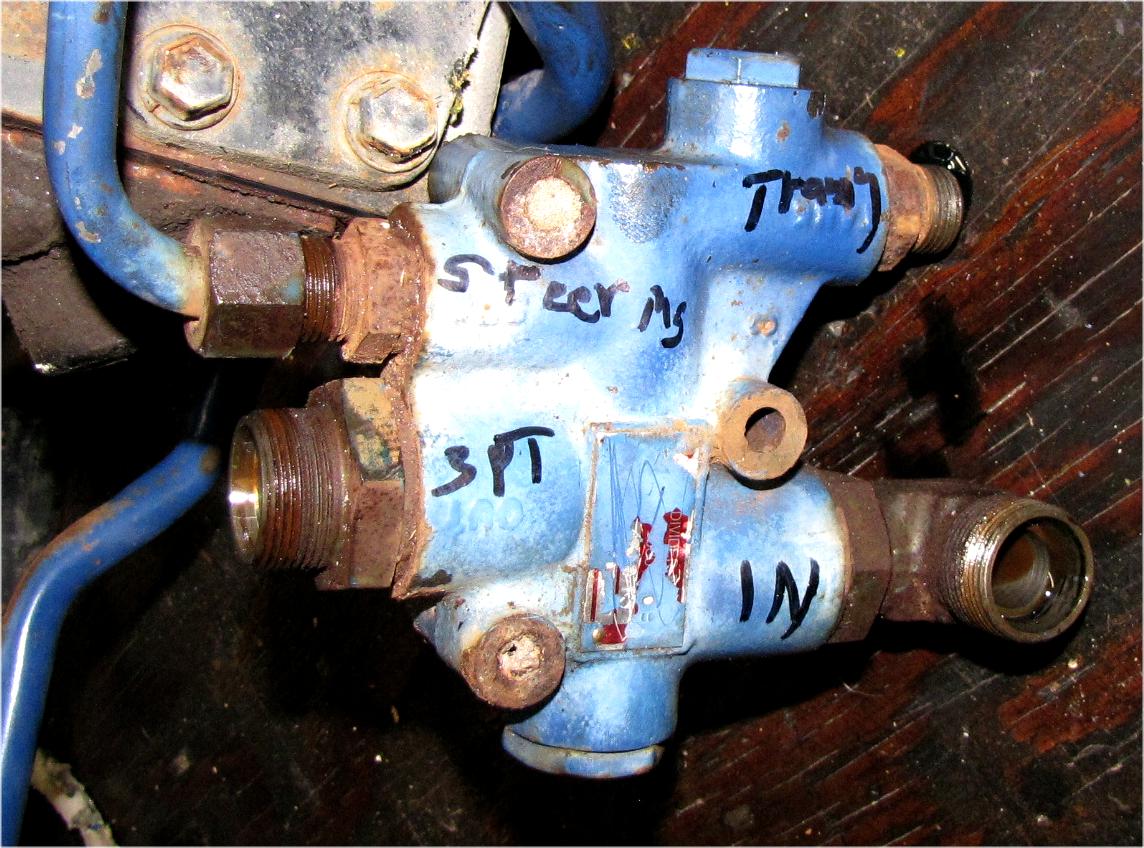

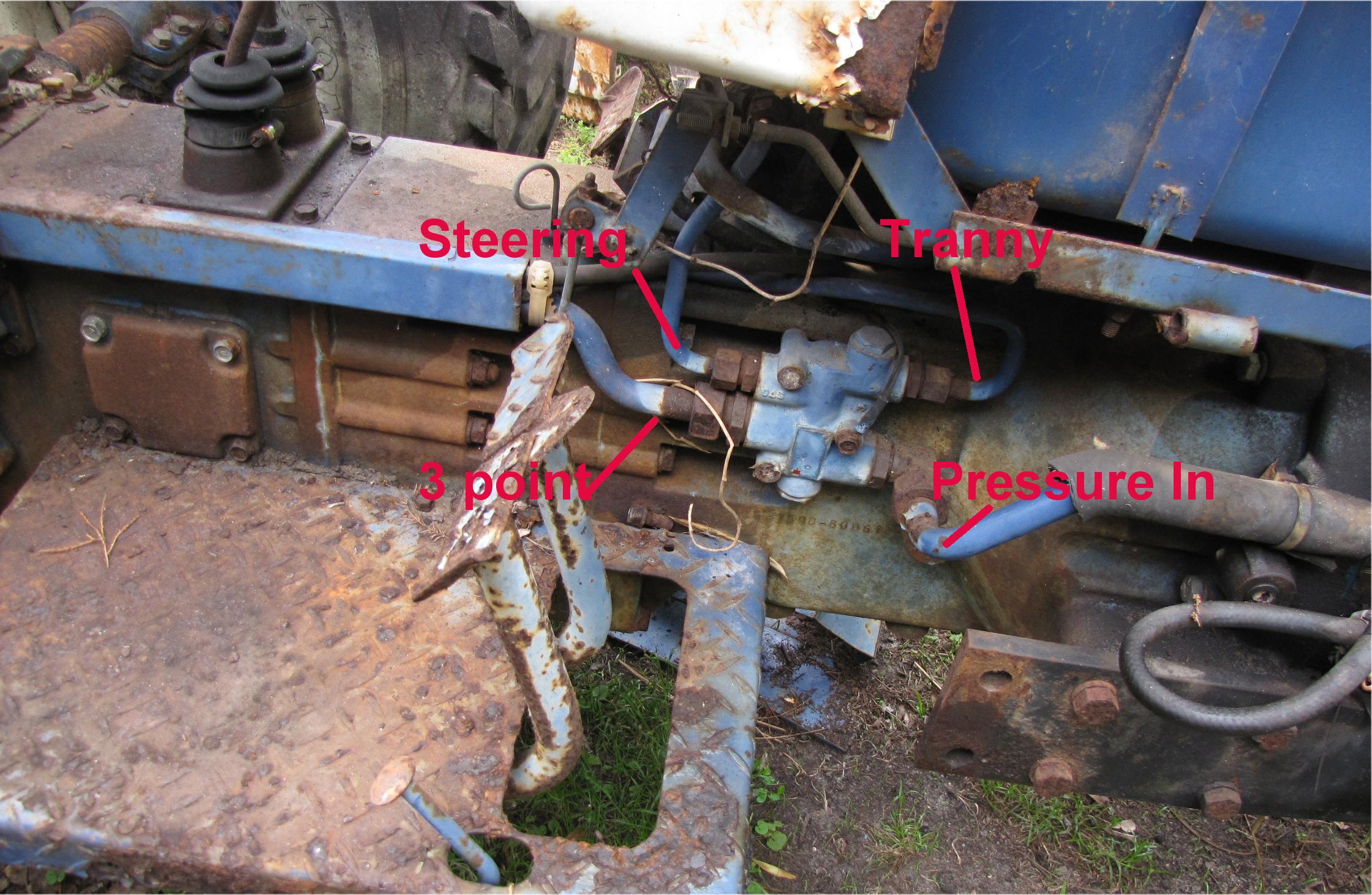

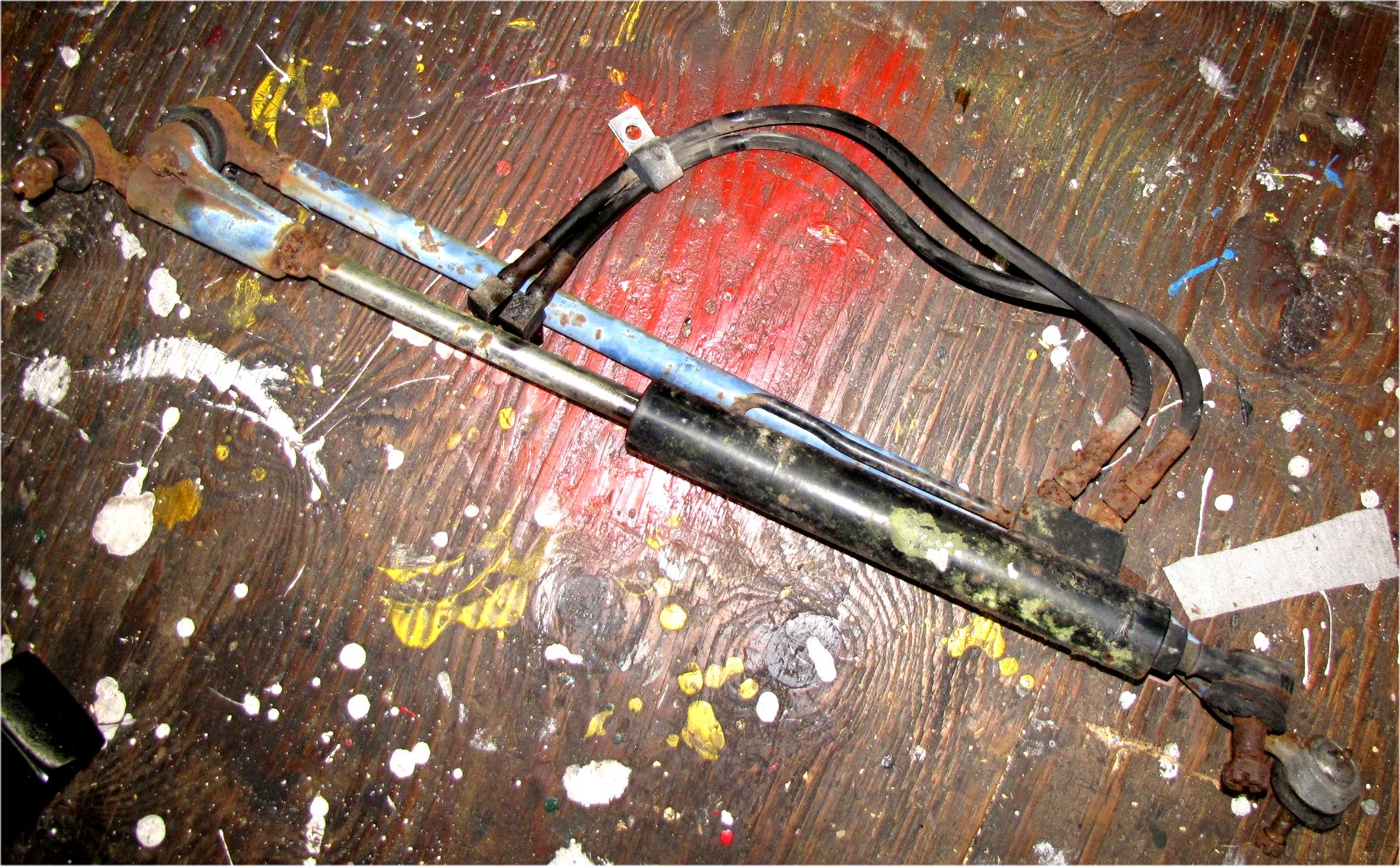

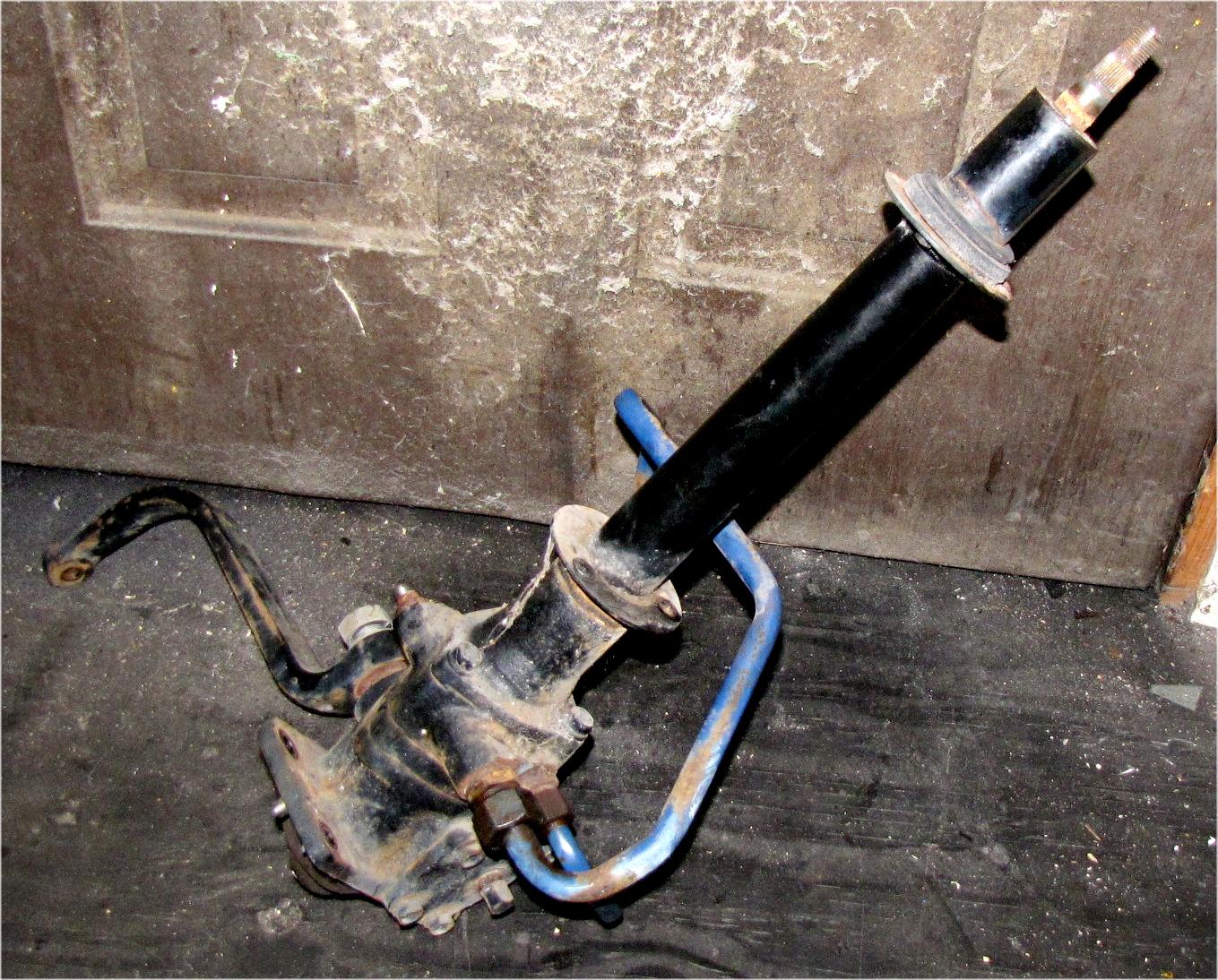

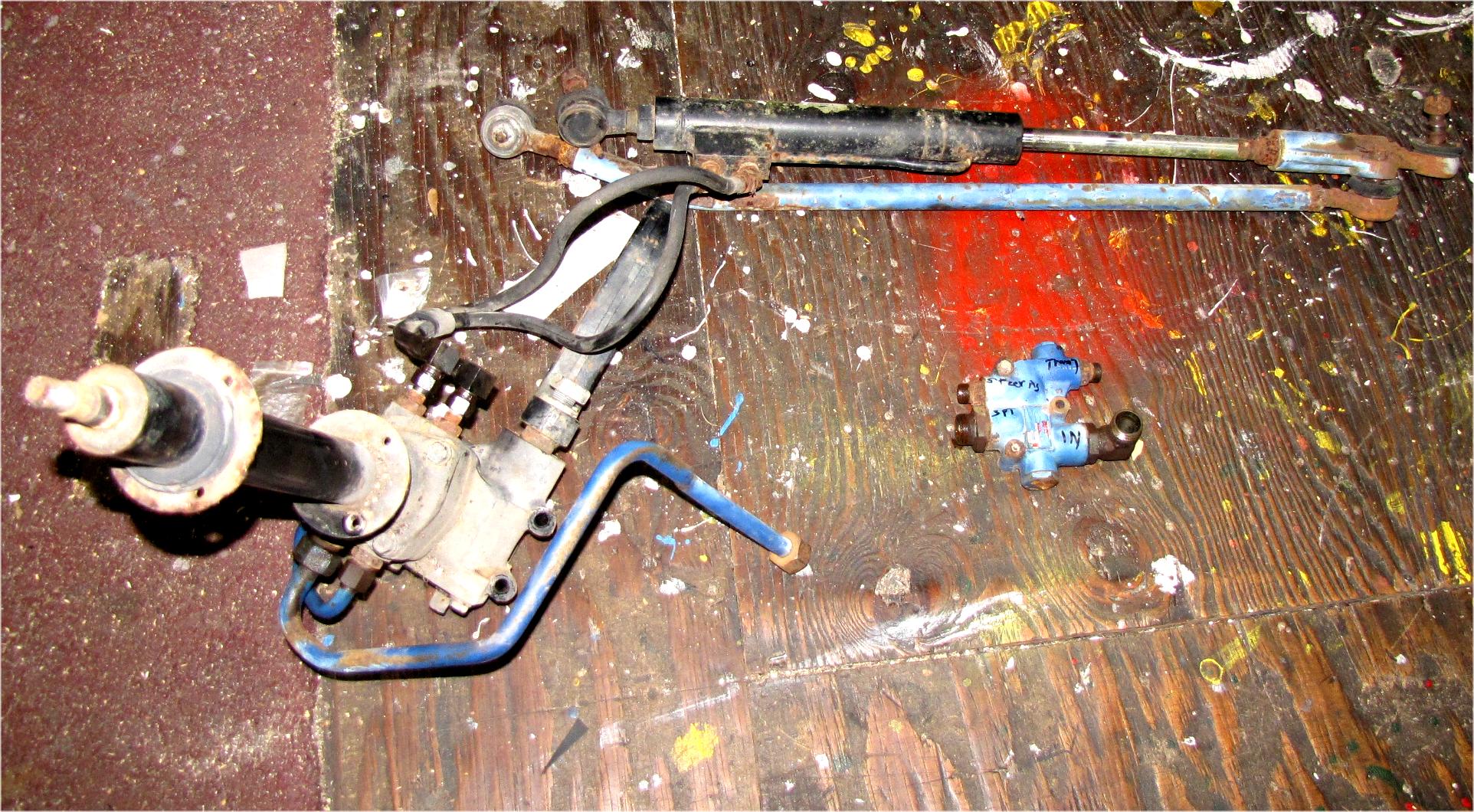

Included are the steering box, pitman arm, hydraulic assist cylinder, power steering specific tie rod, the 2 hoses that run to the cylinder, metal line from steering box to return line, metal line from included valve block to steering box, and the valve block that ties into the main hydraulic pressure line. The ports on the valve block have been marked to help you set it up.
This setup is being sold as a used, as-removed system. The tractor with seized engine was parted out and this system has not been tested. I wouldn't be surprised if it needs some seals which can be troublesome to find. Steel lines are in good condition. The two rubber hoses are older and may need to be replaced.
This is a very hard to find setup for an MT750 and would be useful for replacing a missing or damaged factory power steering system, or for converting a manual steering tractor. Buyer will need to tie into the pressure and return lines on their tractor to complete installation. A local hydraulic shop should be able to help with fittings or hose adaptation if needed.
Please review all photos carefully for condition and compatibility.
This system may very well have some issues and you may need to take a part or two to the local hydraulic shop to try and fix it. Hopefully not but it is quite possible. At best it works fine. At worst you have a good start on adding power steering.
Source Tractor
This part is from a 1978 - 1982 Mitsubishi mt750 | SN# 750D-808612 parts tractor.
Model: mt750 | SN# 750D-808612
Engine: Isuzu 3AB1 1.8L 3 cylinder Diesel
Transmission: 6 or 8 speed manual
